Spring Hammer Impact Tester as per IEC 60598-1 IEC 60335, IEC 60695, IEC 60947, IEC 60898, IEC 61008-1, IEC 60669-1, IEC 60884-1, IEC 60950-1.

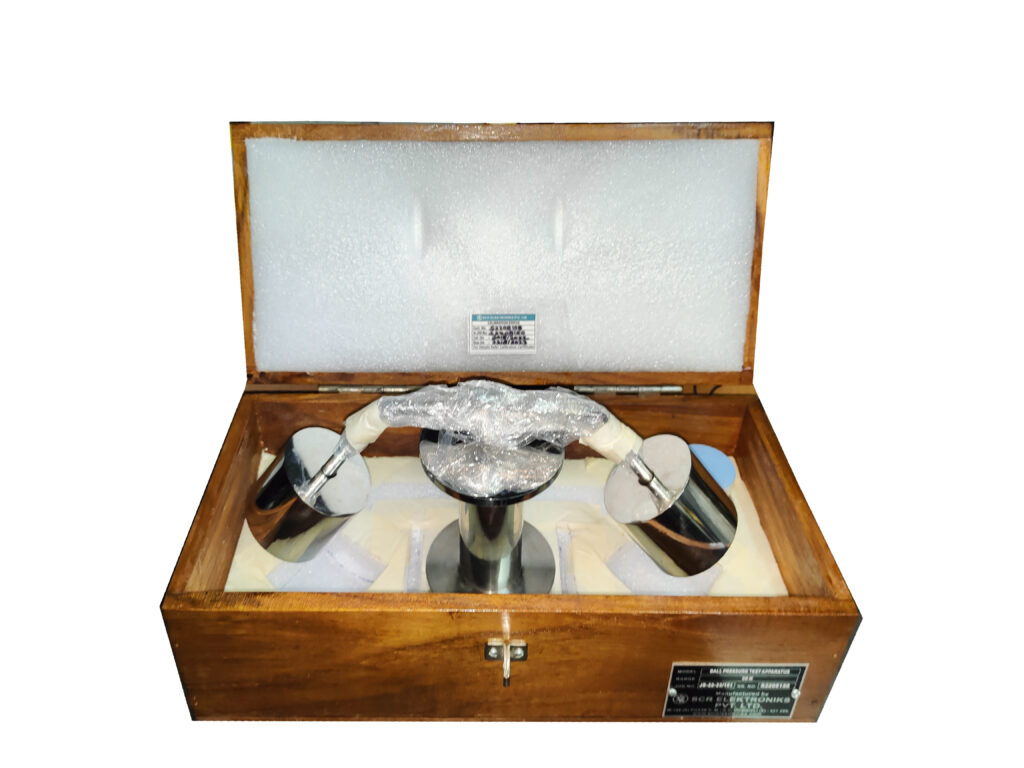

The SCR make Ball Pressure Test Apparatus as per IEC IEC 60598-1 IEC 60335, IEC 60695, IEC 60947, IEC 60898, IEC 61008-1, IEC 60669-1, IEC 60884-1, IEC 60950-1 is used to check the integrity of dielectric material with respect to resistance to elevated operating temperature.
It is a precision engineered test instrument for use by safety and compliance testing laboratories.
The SCR Make Ball Pressure Test Appratus is used to test insulation materials used in Electrical Appliances, Electrical wiring accessories, luminaries, motors, connectors, etc.
The sample to be tester is placed on a platform and the ball pressure apparatus is placed on top of it. The whole assembly is then placed inside an oven and maintained at the test temperature for the specified time period. After the test period, the sample and ball pressure apparatus are removed from the oven and cooled to room temperature. Finally, the depression created by the ball pressure apparatus in the sample due to softening of the sample is measured. The sample is said to comply with the requirements if the diameter of the impression does not exceed the value specified in the relevant specification.
The SCR Make Ball Pressure Test Appratus is used to test insulation materials used in Electrical Appliances, Electrical wiring accessories, luminaries, motors, connectors, etc. as per IEC IEC 60598-1 IEC 60335, IEC 60695, IEC 60947, IEC 60898, IEC 61008-1, IEC 60669-1, IEC 60884-1, IEC 60950-1.
