Di-Electric Voltage Breakdown Tester (Programmable High Voltage Tester) as per ASTM D 149 and IEC 60243

Customised Hipot Tester for testing Dielectric Voltage Breakdown and Dielectric Strength of Solid Insulating material as per ASTM D149 – 09 and IEC 60243

PC-Based-Di-Electric-Breakdown-Voltage-Tester-as-per-ASTM-D149
PC Based Programmable High Voltage Tester as per ASTM D149 and IEC 60243

SCR ELEKTRONIKS make Di-Electric Breakdown Voltage Tester (Programmable High Voltage Tester) is the unique High Voltage breakdown tester indispensable for all types of Industrial grade Electrical products manufacturers for carrying out High Voltage Test according to different standards like ASTM D 149, Clause No. 12

The test bench tests the di-electric withstand capability of the product with settable high voltage and allowable leakage current. The voltage set can be ramped up slowly with a settable ramp up time so that the user can exactly find the voltage level at which the insulation breakdown takes place.

Get A Quote

The equipment provides an electronic circuit for current sensing & tripping. Various tripping current ranges are provided to protect the sample as well as the equipment. The high potential test system is designed for all the methods of voltage applications (voltage profiles) such as short time test, step by step test, slow rate of rise test etc. – thus it caters to requirements of the ASTM D 149 test standard.

We provide an oil bath environment (test chamber) with various electrodes as mentioned in the Table 1 (page 3) of the standard. We welcome inquiries for customised high voltage testers with customised electrode dimensions.

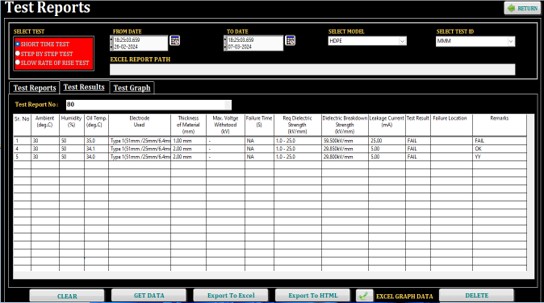

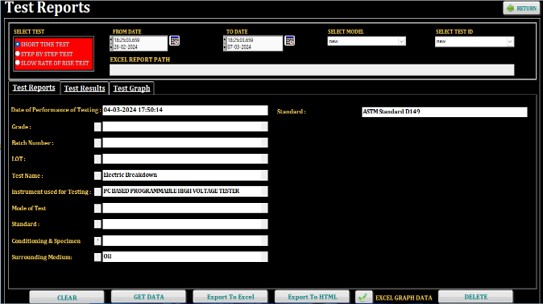

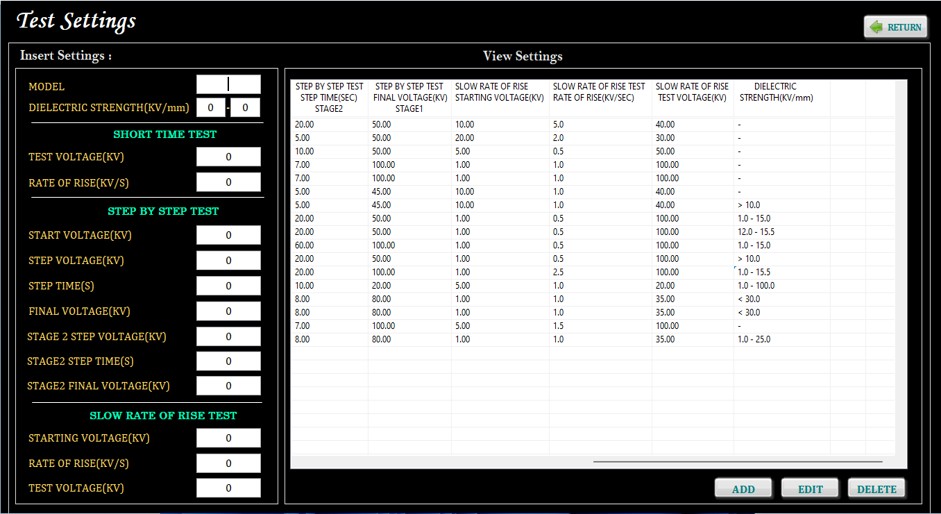

In the PC based models, voltage, time, rate of rise & all other parameters can be set. The voltage against time graphs (real-time as well as test results) can be seen in the software. User can generate reports, export to MS Office / PDF, save & set all parameters.

Salient Features

  • This Programmable Unit has facility to carry-out below test :
    a) Manual Mode sudden application of test voltage
    b) Auto Mode ( Programmable Mode - PLC or PC) as per ASTM D149, Clause 12 can undergo 3 tests namely
    Method A : - Short Time Test
    Method B : - Step by Step Test
    Method C: - Slow Rate of Rise Test
  • Different Electrodes (Type 1 to Type 7) as per ASTM D149 are provided.
  • Rate of rise of Voltage (speed of variac) can be selected automatically by PLC or PC.
  • Safety Factors:
    a) Door Interlock for Test Chamber.
    b) Emergency OFF facility
    c) Oil cooled / insulated HV Transformer
  • The test bench can be customized as per Voltage Level & Leakage Milliampere Level so as to suit its testing needs. Also, All Models can be customized according to AC , DC or both and can also be customized with Micro controller based or PC based.

Specification

  • Input Supply: Input Supply: 415V AC, 3-phase, 50Hz, 28Amp each phase. (Tailored to your standard supply from electrical utility)
  • Voltage Range : Model 1 : 0 to 50KV AC & Model 2 : 0 to 100KV AC.
  • Tripping threshold – 5 mA, 10 mA, 25 mA, 50 mA, 100 mA AC.
  • Trip current setting will be selectable with rotary selector switch.
  • Rate of Voltage Rise:
    a) Low limit – 0.5 % of full scale.
    b) High Limit: 10 % of full scale .
  • Duty cycle: 50% and 5min duration.
  • Indicator Lamps – HT ON, PASS, HV TRIP, DOOR OPEN & TEST OVER.
  • Digital Meters to indicate voltage and current

Test Methods

Method-A-Short-Time-T est

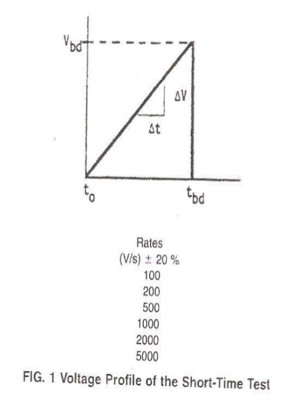

Method A: Short Time Test

Apply voltage uniformly to test the electrodes from min 150V/s to max. 5000V/s until breakdown occurs

Method-B-Step-By-Step-Test

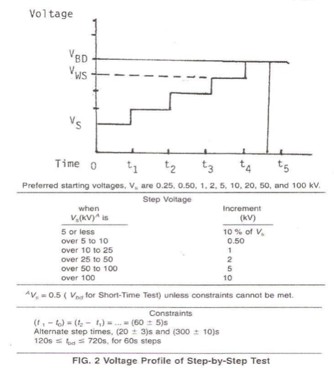

Method B: Step By Step Test

Apply voltage to the electrodes at the preferred starting voltage and in steps and duration as shown in fig. 2 until breakdown occurs.

Method C-Slow-Rate-of-Rise-Test

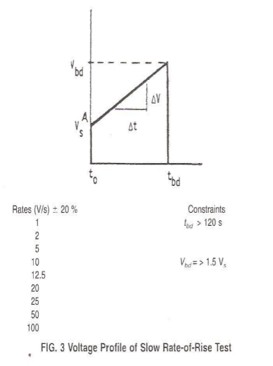

Method C : Slow Rate of Rise Test

Apply voltage to the electrodes, from the starting voltage and at the rate until breakdown occurs

Test Parameters

Test Parameters as per ASTM D149 , Clause No. 12 :

  • Lab view-basedsoftware are working for Rate of rise depending upon final HV test voltage.
  • Shown table gives the idea of Rate of rise Minimum & maximum range, Step voltage as Test voltage.

Sr. No.

Test Voltage

Step Resolution

10% of Full range

Rate of Rise Min –
Max
(Ramp up)

1.

0 to 15kV

Upto 1kV

50V / Sec to
150V/Sec

2.

15kV to 30kV

1kV – 2.0kV

125V / Sec to
375V/Sec

3.

30kV to 150kV

2.5kV – 10kV

500V / Sec To
1500V/Sec

Panel Architecture

 Dual-Panel Setup for Control Unit & HV Unit Testing

  • Control Unit will have:
    a) PC
    b) Variable AC Source
    c) Control switchgears
    d) Input supply terminals
    e)  Inter connecting connectors
    e) Temperature Controller & Indicator (PID) for Oil Bath
  • HV Unit consist of:
    a) HV Transformer
    b) Testing Chamber (Oil bath) with:
    i) Sample holding arrangement for one type of Electrode at a time
    ii) Arrangement of Heating Oil from ambient to upto 90°C Max.
    iii) Oil bath is made of SS, 18 SWG material

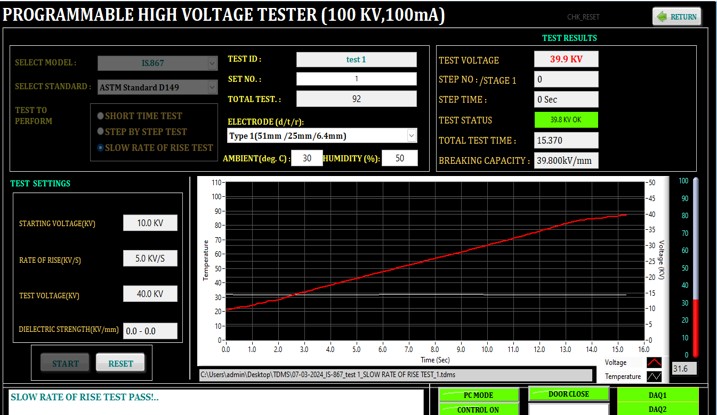

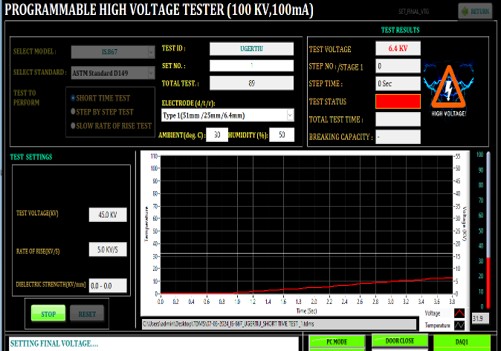

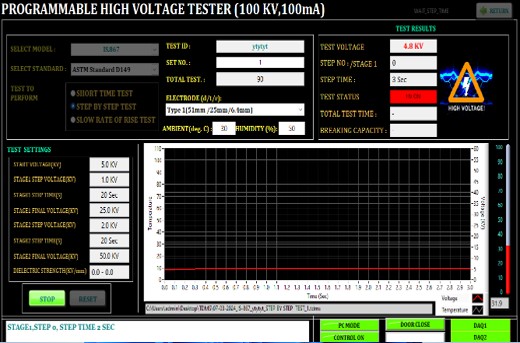

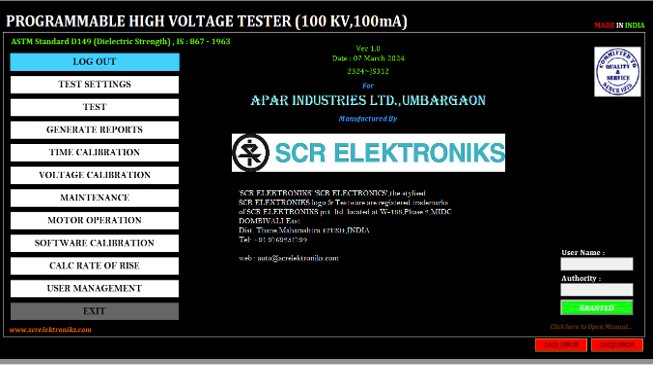

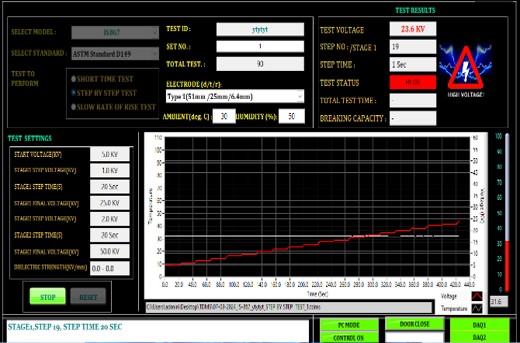

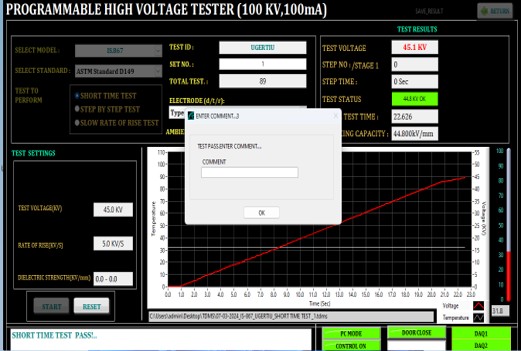

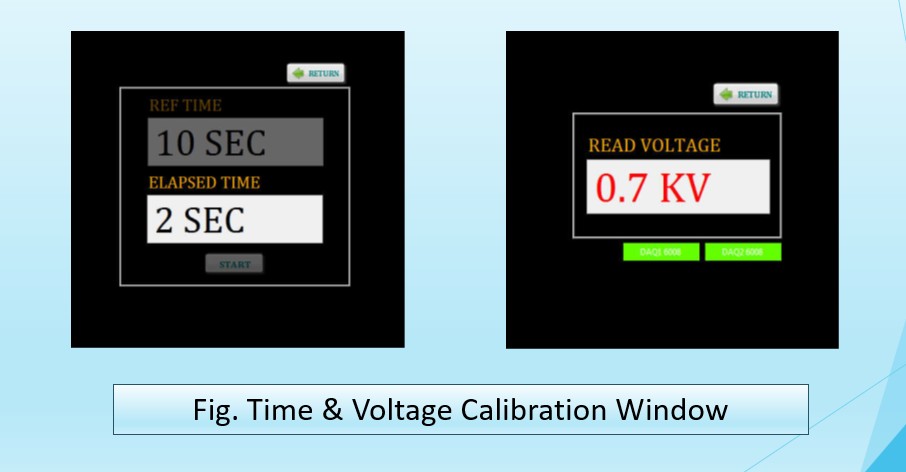

Software Screen - PC Based Di-Electric Voltage Breakdown Tester)
PC-Based-Di-Electric-Breakdown-Voltage-Tester-as-per-ASTM-D149

Programmable High Voltage Tester 100kV
(Di-Electric Voltage Breakdown Tester)

SCR ELEKTRONIKS make Programmable High Voltage Tester model: PHVT is the unique High Voltage breakdown tester indispensable for all types of Industrial grade Electrical products manufacturers for carrying out High Voltage Test according to different standards like ASTM D 149 & IEC 60243



Get A Quote

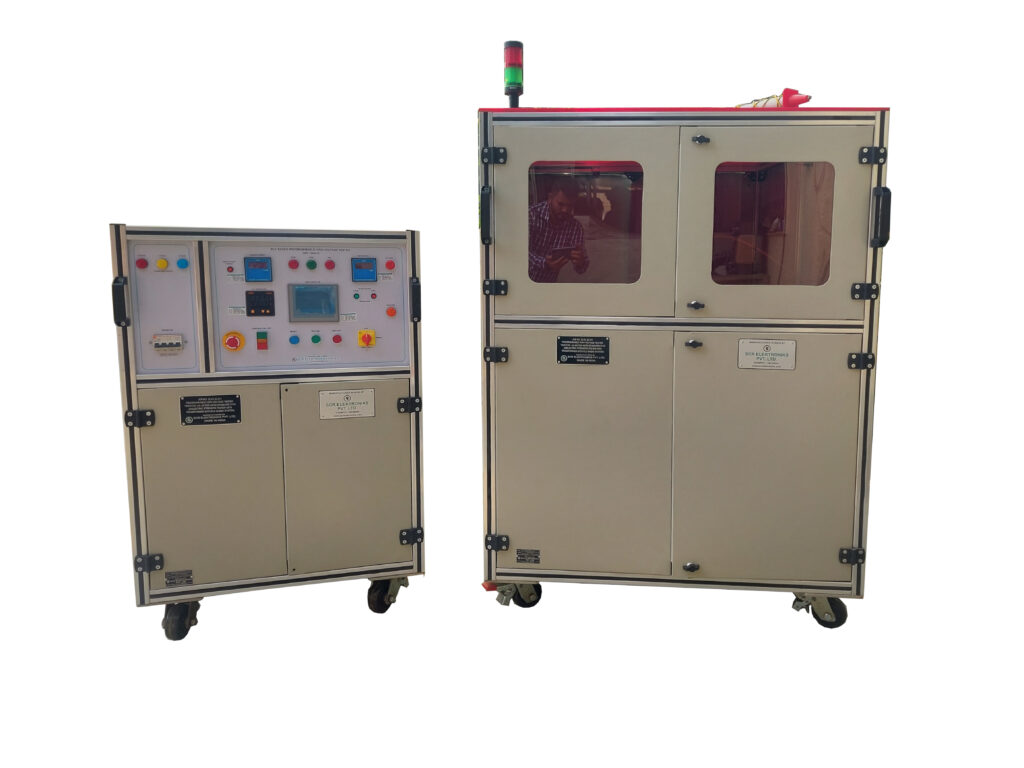

PLC-Based-PHVT-100kV
