High Current Injector 10kA -AC/DC-3 phase

A High Current Injector -3 Phase rated for up to 10kA AC/DC, equipped with three independent sources—1kA, 2.5kA, and 10kA designed to cover a wide current range from 5A to 10,000A.

High-Current-Injector-10KA
Custom- Built High Current Source System (AC/DC – 3 phase) for Schnieder Electrical Pvt. Ltd., Bangalore

The SCR Make 10kA AC High Current Injector with DC option is a custom – built system designed to support high-current testing such as for Temperature Rise Test or other tests as per your testing standard (IEC, UL, ASTM etc.) supported by NI LabVIEW/PC based Testware software. It is controlled via a common Industrial PC interface which enables precise, automated, and safe testing of high-current electrical components such as Air Circuit Breakers (ACBs), Busbars, Connectors, Switchgears like MCCB, MCB, Contactors and Protection System

Custom – Built High Current Source System (AC/DC-3Phase)

The setup includes:

Source1: 12.5 V / 1000 A (1& 3-phase AC) + equivalent DC output

Source 2: 12.5 V / 2500 A (1& 3-phase AC) + equivalent DC output

Source 3: 12.5 V / 10000 A (1& 3-phase AC) + equivalent DC output

Designed for testing applications requiring low-voltage, high-current delivery, the bench perform electrical validation tests. Its modular and scalable structure ensures operational reliability and system safety; it supports precise testing and programming for trip/non-trip and overload verification of ACBs and similar devices.

Purpose of the Equipment:

To deliver programmable AC and DC currents from 10A to 10,000A at 12.5V, controlled through a single industrial PC & LabVIEW based Software suite.

To perform Trip/Non-Trip, Overload, and Thermal Stress simulations across a wide range of current levels.

To validate the performance stability of low-voltage high-current electrical systems used in massive electrical power infrastructure.

Features

Component

Accuracy Class

Max Range

Digital Voltmeter

Class 1

0–500V AC

CT – Source 1

Class 0.5

1000A

CT – Source 2

Class 0.5

3000A

CT – Source 3

Class 0.5

10000A

Shunt (Each Source)

0.1Ω / 50W

Configuration

Injector

Cooling Type

Variac Type

Current Rating

Source 1

Inbuilt Air Cooling

Air-Cooled Variac

10A–1000A

Source 2

Inbuilt Air Cooling

Air-Cooled Variac

30 A–2500A

Source 3

External Oil Cooling

Oil-Cooled Variac

500A–10000A

Custom-Built High Current Source System (AC/DC - 3Phase)
2D Daigram

Current-Source-12.5V/1000A AC/DC

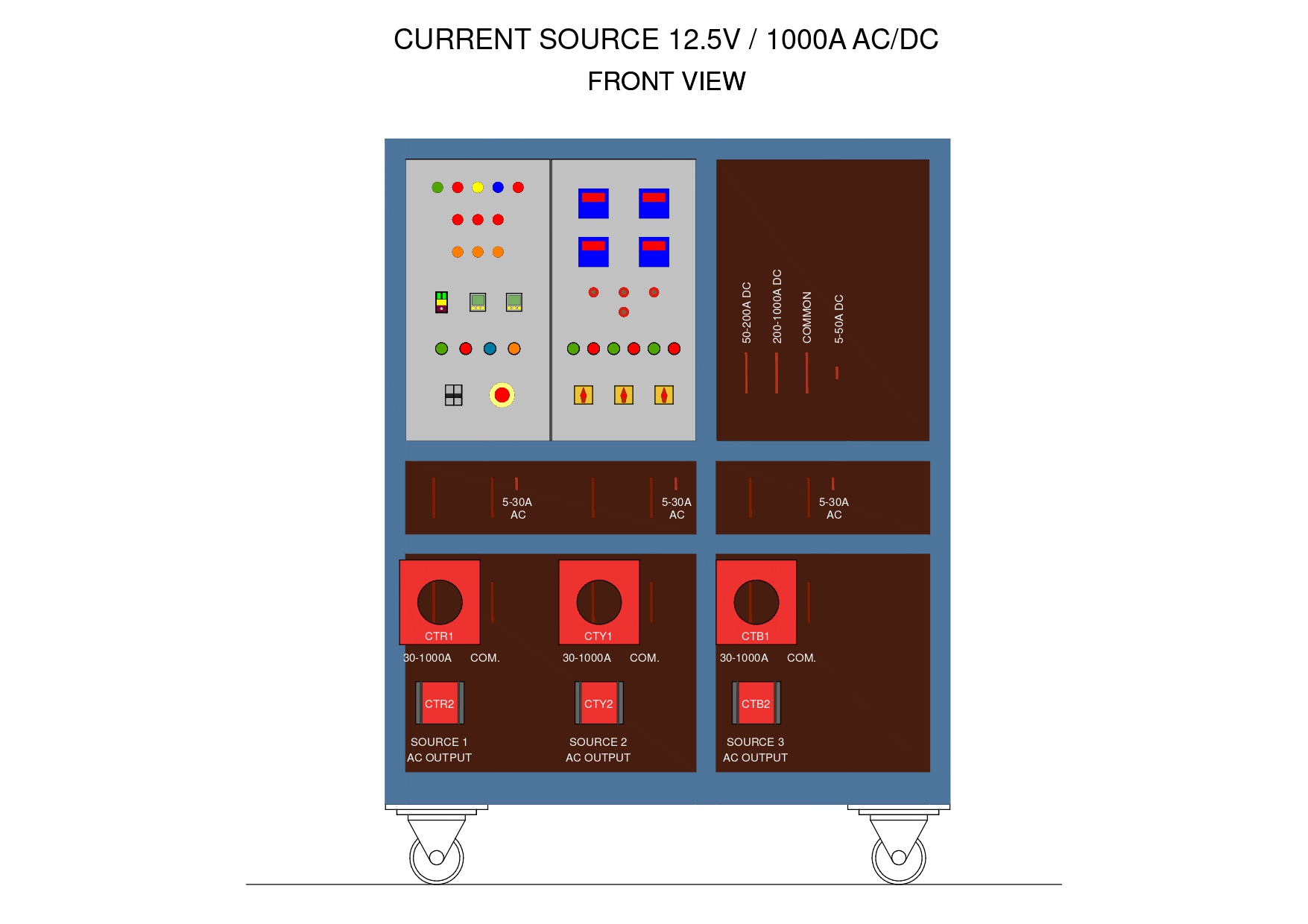

High Current Source System 12.5V /1000A AC 1 & 3 Phase with DC option - Source 1 Front View

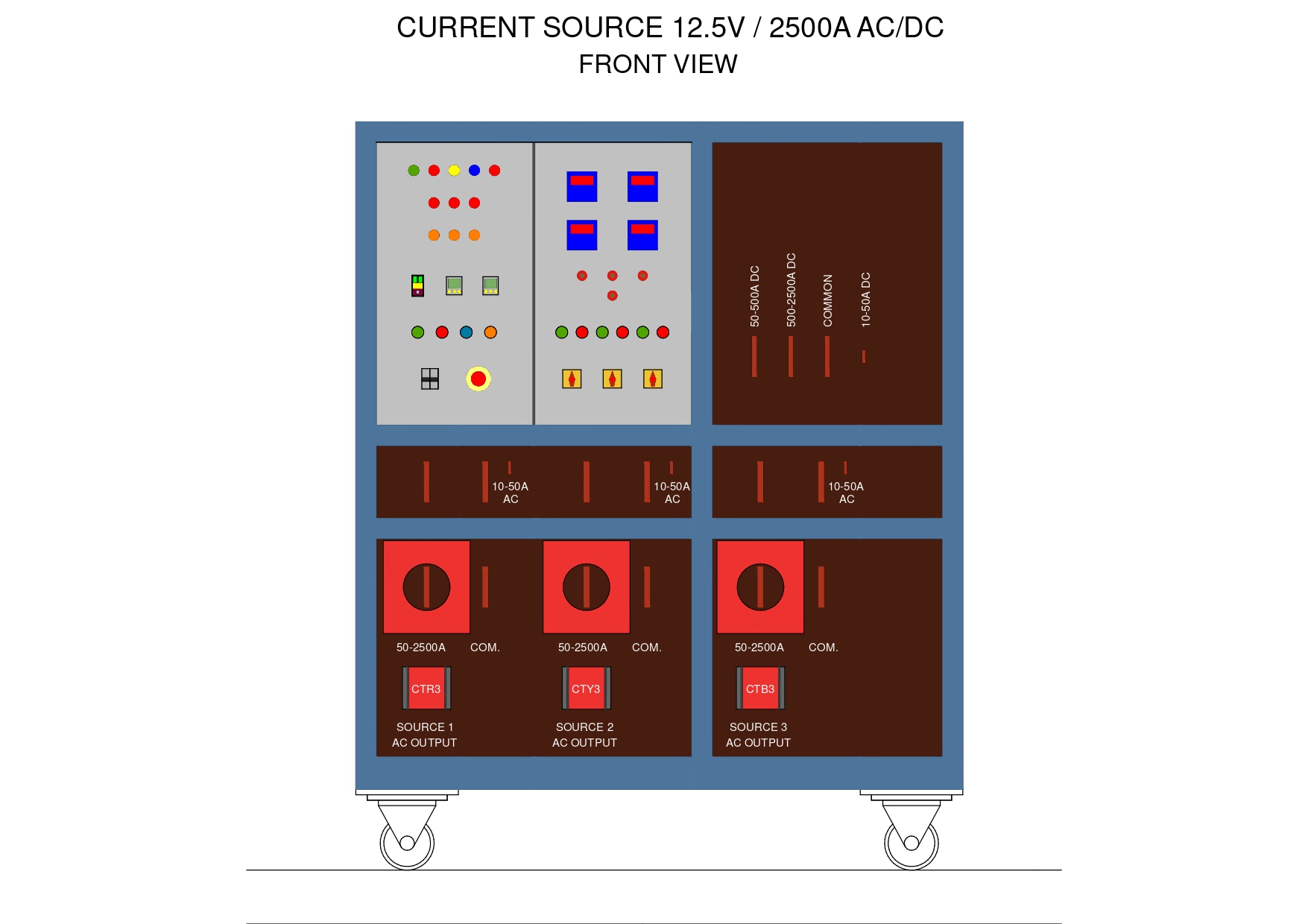

High Current Source System 12.5V /2500A AC 1 & 3 Phase with DC option - Source 1 Front View

Custom-Built High Current Source System (AC/DC - 3Phase)
2D Diagram

Current- Source- 12.5V/10000A- AC/DC- with DC Output

High Current Source System 12.5V /10000A AC 1 & 3 Phase with DC option - Source 3 Front View with DC Output

Safety & Protection Features

The PC, Interface module and software will be common for all the Sources

PC Controller Features

All Sources can be programmed simultaneously or independentlyfrom one interface

High-Current-Injector-10KA

High Current Injector 10kA -AC/DC

The High Current Injector (HCI) is designed to deliver controlled high-current outputs up to 10,000 A for both AC and DC applications across three phases. It is engineered for testing, calibration, and validation of power components, busbars, switchgear, and protective devices under high-load conditions.



Current- Source- 12.5V/10000A- AC/DC- with DC Output
