Inclined Plane Tracking and Erosion Tester
as per ASTM D2303, IEC 60587

Precision High-Voltage Inclined Plane Tracking and Erosion Analyser setup is designed to cover test method for the evaluation of the relative tracking and erosion resistance of insulating materials as per ASTM D2303-97, IEC 60587 & EN-50397-1

Inclined-Plane-Tracking-and-Erosion-Tester
High-Voltage Inclined Plane Tracking & Erosion Tester as per ASTM D2303, IEC 60587 - 5 Station

SCR Elektroniks, Precision High-Voltage Inclined Plane Tracking and Erosion Tester as per ASTM D2303, IEC 60587 & EN-50397-1 is designed to cover test method for the evaluation of the relative tracking and erosion resistance of insulating solid using liquid contaminant as per ASTM D2303-97, IEC 60587 & EN-50397-1

As per standard ASTM D2303 insulating material should withstand against tracking & Erosion on the field. Which is why they are evaluated in a laboratory by means of liquid contamination in a particular arrangement. The equipment displayed herewith are used for the same purpose. A high voltage is applied between two electrodes and a liquid contaminant is used in between so as to check & measure tracking. We offer this system in various configurations based on your application – R&D or Compliance Test & Assessment.

The routines/measurements that can be conducted under High-voltage Inclined Plane Tracking and Erosion Tester are:

  • Initial Tracking Voltage
  • Time to track
  • Erosion

In Initial Tracking Voltage test, as per clause 9.0 of ASTM D2303, test voltage is applied to the electrodes and is gradually increased in steps till the insulation fails. A qualified operator observes & records the character of the track and the appearance of the test specimen. For detailed explanation, please refer ASTM D2303, IEC 60587 and EN-50397-1.

In Time to Track test, a constant specified test voltage is applied and the tracking time is recorded.

In erosion test, a test voltage lower than the voltage required to break the insulation is applied for an extended period of time.

The object here is to measure the erosion as a function of time of voltage application. Please contact us for a free consultation regarding test methods in ASTM D2303, IEC 60587 and EN-50397-1

Salient Features

Specification

High-Voltage Inclined Plane Tracking and Erosion Tester Variants

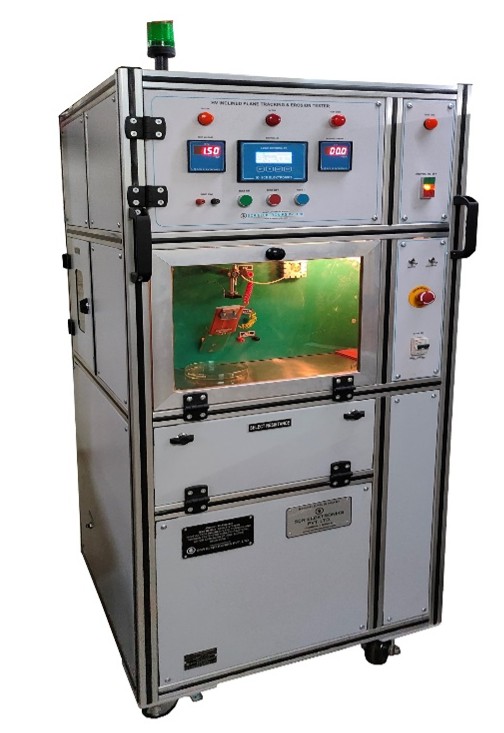

Single Station - High-Voltage Inclined Plane Tracking and Erosion Tester - Micro Controller Based

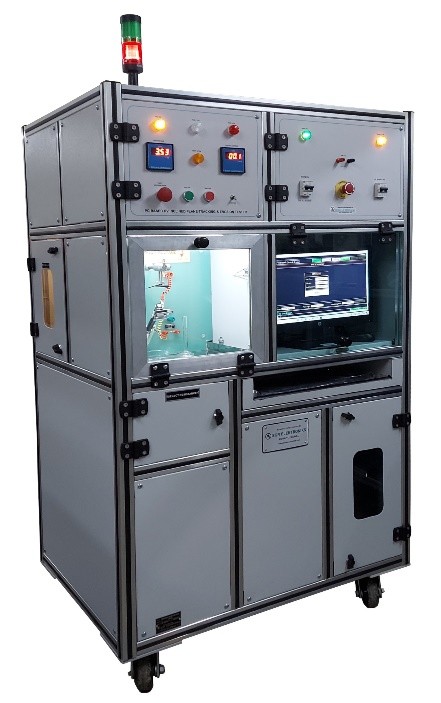

Single Station - High-Voltage Inclined Plane Tracking and Erosion Tester - PC Based

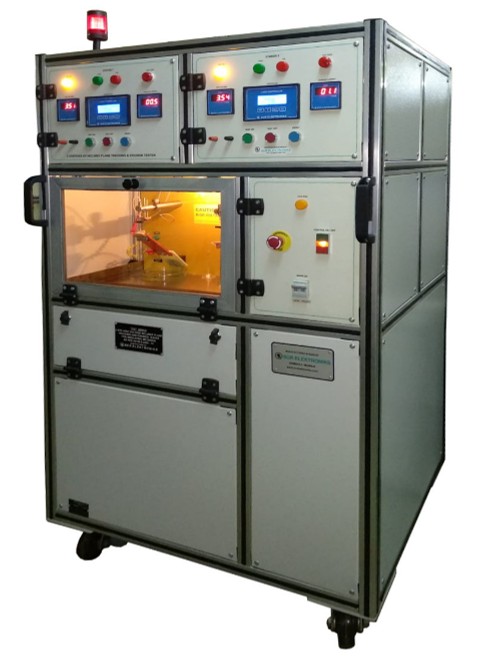

Two Station - High-Voltage Inclined Plane Tracking and Erosion Tester - Micro Controller Based

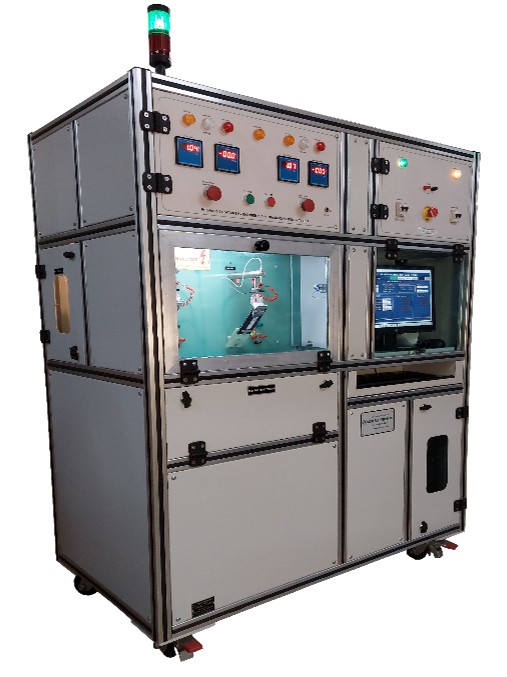

Two Station - High-Voltage Inclined Plane Tracking and Erosion Tester - PC Based

Customization

The test bench can be customized as per number of stations 1, 2,& 5 and can also be customized with Micro controller based or PC based

PC Datalogging Comprise of:

Application Note

The tester is used to test insulation testing of special purpose cables such as armoured cables. It can also be used for conventional cables. The tests covered are Time to track test , Initial tracking voltage test and Erosion test.

Simalar Products

Water-tree growth resistance tester – ASTM D 6097

Water-tree growth resistance tester – ASTM D 6097

SCR Elekroniks have developed a Testing Setup to carry out the standard test method for Relative Resistance to Vented Water-Tree Growth in Solid Dielectric Insulating Materials as per ASTM D6097

High-Current-Arc-Ignition-Test-Apparatus-as per-UL-746-A

High Current Arc Ignition Test Apparatus

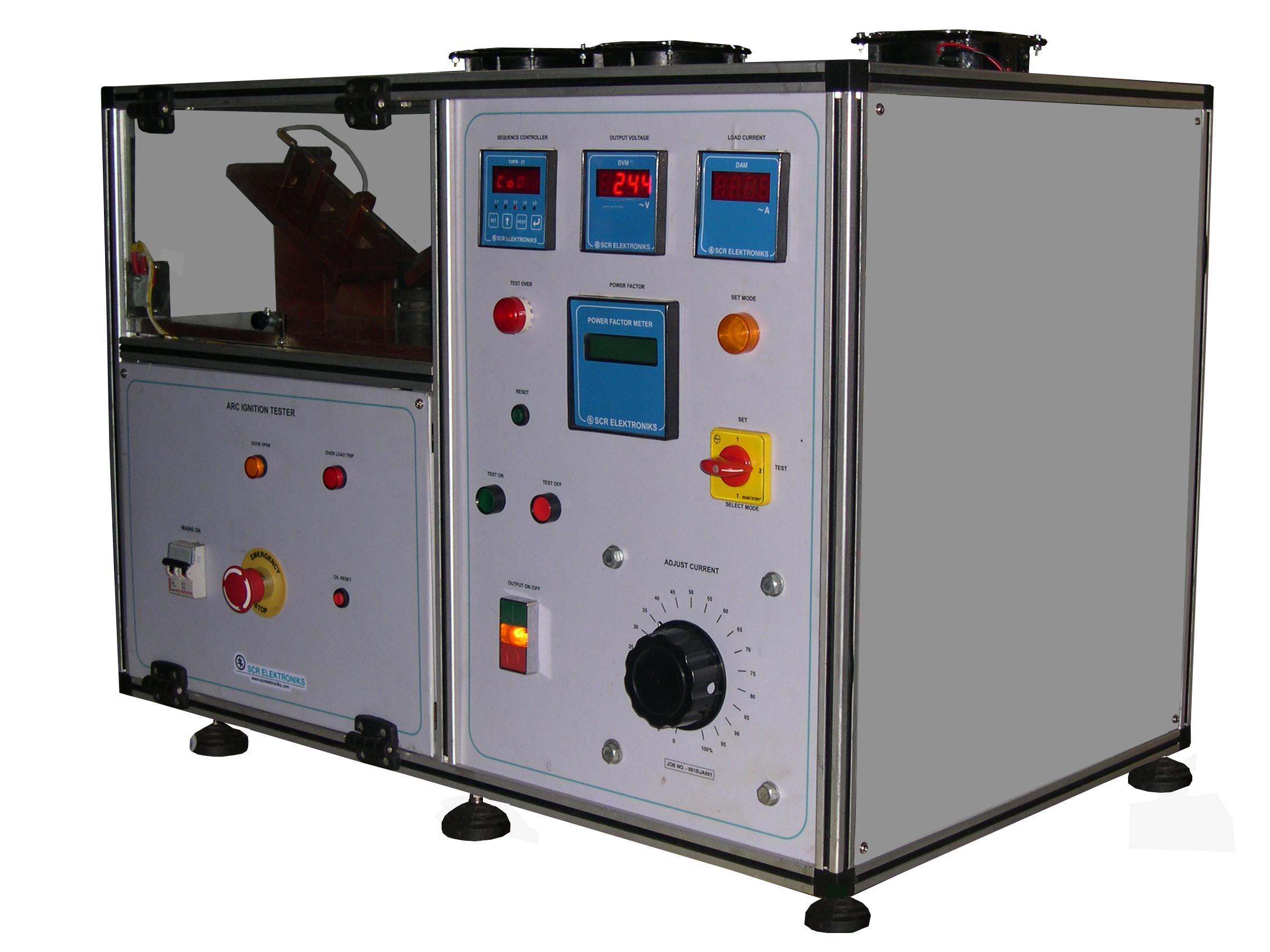

SCR Elektroniks have developed High-Current Arc Ignition Test Machine is used for evaluating Ignition Performance Level Category as per UL 746A.
