Glow Wire Test Apparatus - IEC 60695-2-10

Fire Hazard Testing for Testing Insulating Material as per IEC 60695, IEC 60335,
ASTM D 6194-03 & UL 60745-1

Glow-Wire-GWT-A5-Automatic-Operation-PLC Based-for -flammability Test
Glow wire test apparatus GWT-A5 (Automatic Operation) for testing insulating material as per IEC 60695-2-10:2021, IEC 60335, ASTM D 6194-03 & other standards.

Glow Wire Test Equipment is used for fire hazard testing as per IEC 60695-2-10, IEC 60335, ASTM D 6194-03, UL 746 & other standards.

Glow wire test apparatus is the commonly used equipment for testing solid insulating material for fire hazard testing. This test apparatus is covered in IEC 60695-2-10:2021 and commonly referred for various devices in many standards such as IEC 60335, IEC 60695-2-11, IEC 60695-2-12, IEC 60598-1, IEC 60947, IEC 60898, IEC 61008-1, IEC 60669-1, IEC 60884-1, IEC 60950-1 / IS 13252, IEC 60238, IEC 60745-1, IEC 60400, IEC 60730-1, IEC 61050, IEC 60320-1, IEC 61058-1, ASTM D 6194-03 and UL 60745-1.

As per IEC 60695-2-10 (Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure), parts of solid insulating materials are ignited by glowing wires. A nickel/chromium wire is heated to 960°C and the insulating material is pushed against it with a force of 1 Newton. It is checked that the insulating material does not attain a certain temperature or catches fire so as to prevent fire hazard in their vicinity. For complete description, please refer IEC 60695 – 2 – 10 : 2021, even if you have product specific standards such as IEC 60898 for Miniature Circuit Breakers (MCB), IEC 60335 for Safety of Electrical Appliances or IEC 60947 for Switchgears and so on. If your product is to be tested for conformity assessment, please also refer ASTM D 6194 – 3 (Standard Test Method for Glow-wire ignition of materials).

Salient Features

Specification

Variants

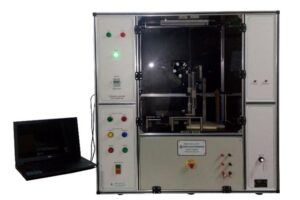

Glow-Wire-GWT-A3-Automatic -Operation-with-PC-Datalogging

Model GWT–A3 (Automatic Operation) with PC Datalogging for flammability test as per IEC 60695-2-10: 2021

Designed to carry out Fire Hazard Testing as specified in IEC60695-2-10:2021.

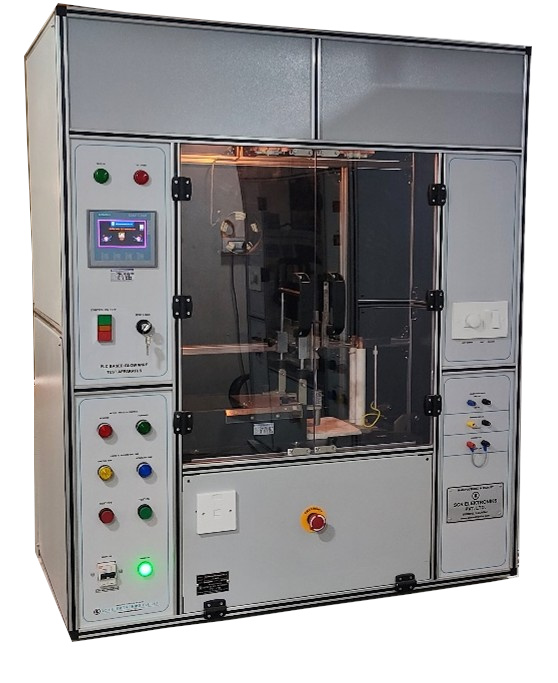

Glow-Wire-Test-Apparatus-GWT A4 -PLC Based

Model GWT A4 ( Automatic Operation) PLC Based – For flammability test as per IEC 60695-2-10: 2021

Glow wire test apparatus GWT -A4 ( Automatic Operation) for testing insulating material as per IEC 60695-2-10:2021, IEC 60335, ASTM D 6194-03 & other standards.

Customization

Glow Wire Test Apparatus can be customised as PC based & Non PC based. PC Datalogging Comprise of :

Application Note

The test is carried out to asses the flammability characteristics of a Product body, typically made up of thermoplasts and thermosets. The glow wire tester is an important tool not just to assess the quality of the Product, but also to continuously check the incoming components related to the Product body for their flammability characteristics.
