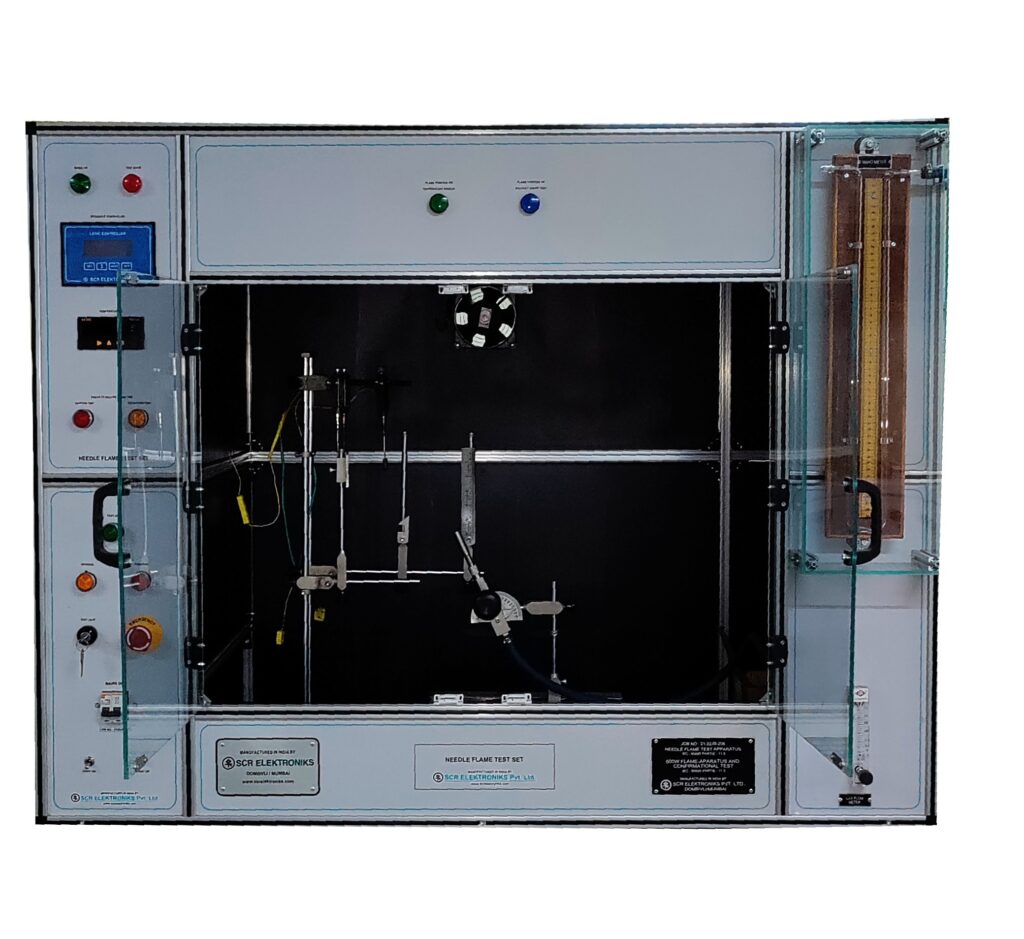

Needle Flame Test Apparatus for fire hazard testing as per IEC 60695-11-5, IEC 60335-1, ASTM D635-18, UL 94, BS 6458 & other standards.
The equipment is commonly used for testing solid insulating materials as per covered in IEC 60695-11-5 and commonly referred for various devices in many standards such as IEC 60335-1, IEC 60695-11-3, IEC 60695-11-10, IEC 60695-2-2, IEC 60598-1, IEC 60512-20-1, IEC 60749-32, ASTM D635-18, UL 94, UL 1694, BS 6458, and IS 11000-2-2.
The SCR ELEKTRONIKS Needle Flame Test Apparatus is designed to cover all the referring standards in addition to IEC 60695 – 11 – 5 and UL 94. The entire operation is automatic and there is zero room for sequence error because the micro-controller based dedicated PLC is pre-programmed as per IEC suggested sequence. It’s built using extruded aluminum so as to ensure better aesthetics. All the parts & workmanship is conservative and built to last as per our tradition in test equipment since 1975. We provide parts for the entire life of the equipment which is why leading companies such as Philips, TUV, NRTC, Nemko, Whirlpool, CSIR, BIS, Intertek, Franke Faber, Panasonic and other leading companies depend on SCR Needle Flame Test Apparatus for certification & conformity assessment.
As per IEC 60695-11-5, the test specimen is arranged in a position of normal use such that ignition is most likely to occur during the test. The test flame (12 mm±1mm) is applied to the surface of test specimen and removed after the specified time. In case of ignition of the test specimen the duration of burning is measured. The test specimen is considered to have satisfactorily withstood the needle flame test if there is no flame and no glowing of the test specimen and no ignition of specified layer also flames or glowing of the test specimen extinguish within 30s after the removal of needle-flame.
The needle flame test determines the effect of a small flame which may result from fault conditions.
Tracking Index Test Machine from SCR ELEKTRONIKS is a popular product for checking compliance of solid insulating material as per IEC 60112, UL 746A, ASTM D3638 and DIN 53480.
Glow wire test equipment is used for testing insulating material ( Fire Hazard Testing) as per IEC 60695-2-10, IEC 60335, ASTM D 6194-03, UL 746 & other standards.
Needle Flame Test Apparatus is available in PC Based and Non – PC Based mode
Needle Flame tests the susceptibility of the insulation material against piercing metallic parts when subjected to fire. The insulation sample under test may be examined later on and be subjected to more tests
Needle Flame Test Apparatus used for testing solid insulating material for fire hazard testing as per IEC 60695-11-5, ASTM D635-18 , UL 94, BS 6458 & other standards
