Portable Residual Current Device - PRCD Testing Equipment

Portable-Residual-Current-Device- Testing-

High Voltage and Routine Testing Setup for RCCB/PRCD (Plug-Mounted) - PC Controlled

SCR Elektroniks has developed PRCD test setup a for conducting Routine Tests and High Voltage (HV) Tests with PC Controlled on Plug Mounted RCCB/PRCD in compliance with IEC 61009-1 (Annexure D).

The system is designed for production line testing, ensuring that every RCCB undergoes automatic verification once loaded into the test fixture. It combines precision measurement, operator prompts, and automated reporting to guarantee product reliability and compliance

Get A Quote

Salient Features

  • Comprehensive Testing : Performs both routine RCCB tests and HV withstand tests in one integrated panel.
  • Automated Operation : PC-controlled sequence ensures consistency, accuracy, and reduced operator dependency
  • LabVIEW Software : User-friendly interface with real-time monitoring, prompts, and data storage.
  • Pass/Fail Indication : Clear visual feedback with Red/Green color coding on the monitor.
  • Data Logging : Test results including trip times are stored in PC for report generation and QC analysis.
  • Flexible HV Test : Adjustable trip currents (5, 10, 25, 50 mA) and programmable test sequences.
  • QC Options : Additional checks at 2× I∆n and 5× I∆n for enhanced quality assurance.
  • Robust Construction : Elegant aluminium profile cabinet with powder coating, mounted on trolley type frame for mobility.
  • Safety First : Integrated MCB protection and isolated HV test design.

Specification

  • Input Supply - 230 V AC ±10%, 50 Hz
  • Leakage Current Ranges 10 mA, 30 mA, 50 mA, 300 mA
  • Current Adjustment: 10 mA – 300 mA (Coarse via switches, Fine via variable voltage)
  • HV Test Voltage: 0 – 2.5 kV AC @ 50 mA
  • Trip Current Settings: 5, 10, 25, 50 mA (manual adjustment)
  • Time Measurement: Displayed on PC screen
  • Fully PC-Controlled sequence and timing

Testing Sequence

  1. Routine Test :
    • Sensitivity Test : To verify correct tripping behavior at different residual currents
    • Speed of Operation Test : Measures Trip Time at  I∆n. Trip time recorded must be within permissible limits.
    • Performance Test – Push Button
    •                                     Reset Button Test.
  2. HV Test : Validates insulation & withstand capability



Portable-Residual-Current-Device- Testing-
PC Based High Voltage & Routine Test Setup for Plug Mounted RCCB (PRCD)

PRCD Testing Equipment

RCCB/RCBO testing equipment functions to verify the proper operation of these safety devices by measuring their tripping times and sensitivity to earth leakage currents and overcurrents, ensuring they will protect against electric shocks and fires in accordance with safety standards.
SCR Elektroniks designs RCCB- RCBO test equipment compliant with IEC 61008-1, ensuring accurate, safe, and reliable residual current circuit breaker testing solutions
Get A Quote

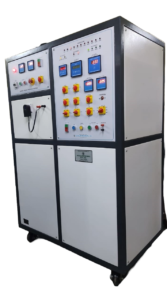

Residual-Tripping-Test-Setup-for-PRCD
Residual Tripping Test Setup for PRCD
