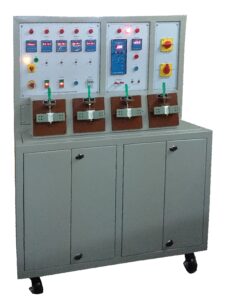

SCR Elektroniks has developed a motor starter test bench to check the continuity of the motor starter against over current. The bench is customizable for 3, 4, 5, 6 and 12 stations.
The test bench is used to test motor thermal overload starters capable of interrupting overlaod current.
Can be customized with PC mode, where it performs all the operations automatically using TESTWARE, without manually entering the settings again and again.

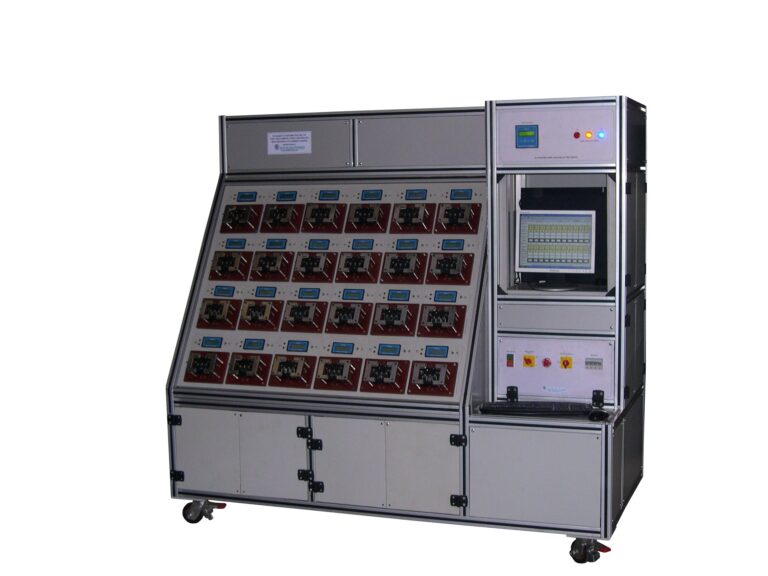

SCR Elektroniks presents you the thermal overload relay test bench in a sophisticated testing topology like never before!
The bench has a facility to test multiple relays simultaneously and independently of each other in a modular fashion.
The system can be chosen as AC current based or DC current based. Also, the number of stations and current range can be customized. The PC software and pneumatic fixture are designed as per the customer specifications.
The bench is used to verify the exact time – current tripping band both at minimum and maximum setting.

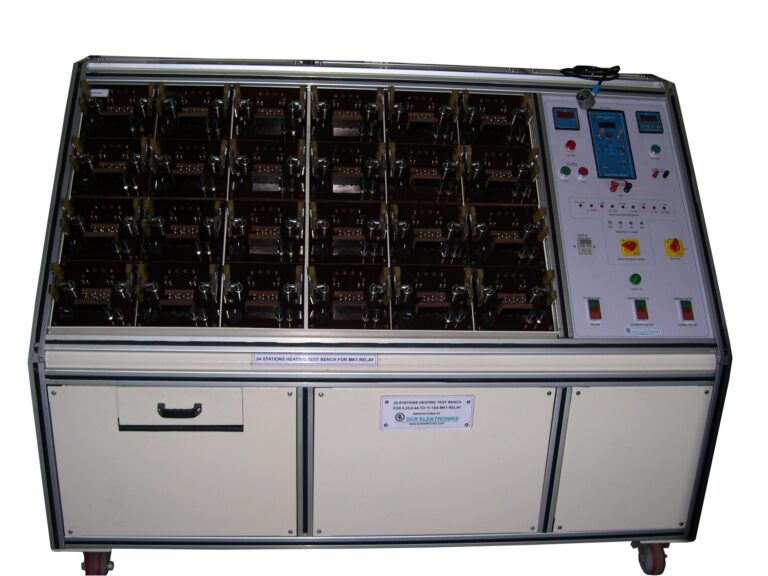

The SCR Elektroniks make relay heating test bench is a low cost heating test bench to test the continuity of bimetallic overload relays against over current. The bench is customizable for 5, 6, 12, 24 and 48 stations as per the customer requirement.
The current range and number of stations can be customized. Also, fixture will be designed as per the customer product.
The bench helps to check the heating and overload contact mechanism characteristics.
The bench is mainly to be utilized for the production testing of bimetal overload relays used to break current using an overload current operated bimetal device, typically for motors and pumps. The speciality of the system is its large range: 1- 50A (2.55 of times the current rating) and thus a wide range of relays can be tested. Also relay meant to break higher overload values can be tested with the system.
The bench can be customized for the maximum testing current range and the number of stations. It can be made PC based with data logging if necessary.
The bench can be customized for the maximum testing current range and the number of stations. It can be made PC based with data logging if necessary.

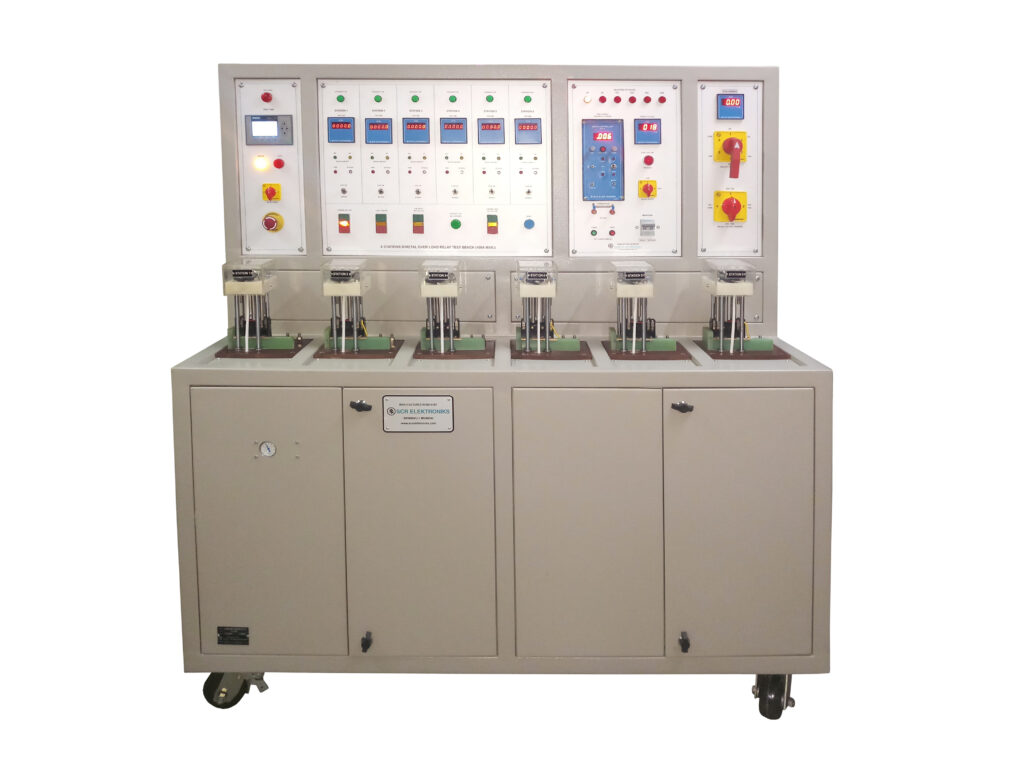

The test bench is designed to test bimetallic overload relays for their thermal overload characteristics

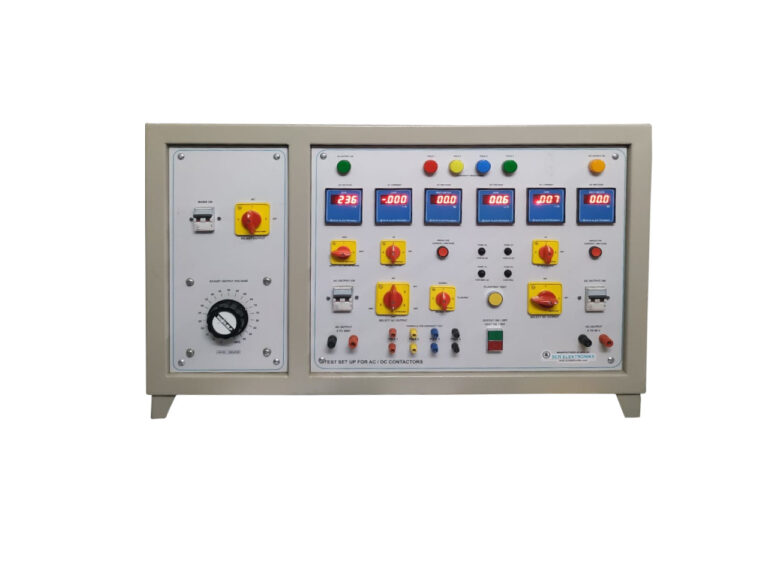

The SCR Elektroniks make bench is a streamlined variant of the multi-station contactor routine test bench. Its standout feature lies in the extensive flexibility it offers across current and voltage ranges—covering AC/DC sources, multiple terminal configurations, and diverse electrical parameters. Equipped with a wide array of AC and DC current/voltage source options along with dedicated resistance measurement modules, the system delivers a comprehensive R&D platform tailored for research engineers. This versatility makes it an ideal solution for experimental setups, prototype validation, and advanced testing requirements.

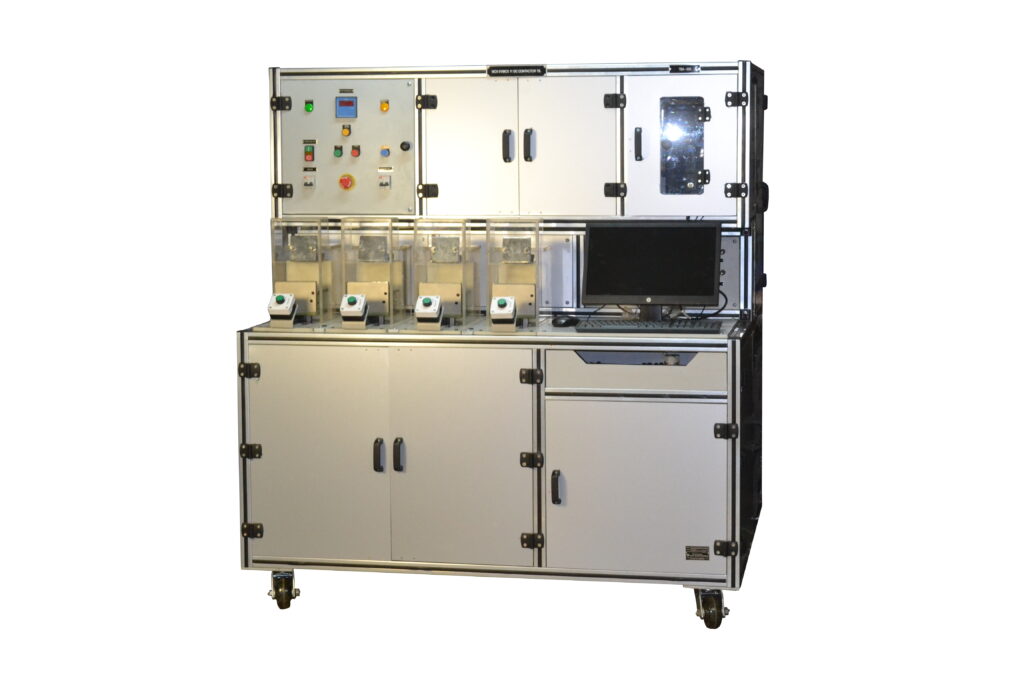

SCR Elektroniks has developed a production test bench specifically for factory testing of contactors. The system is designed to verify a wide range of electrical parameters and ensure compliance with IEC 60947 standards.
