Tracking and Erosion Tester - ASTM D2303 and IEC 60587

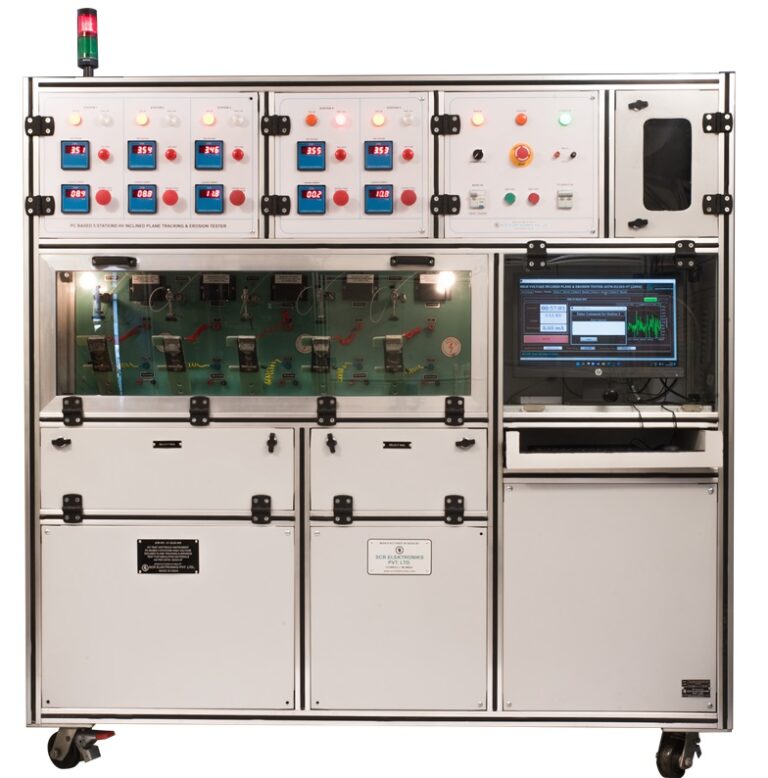

This is a high Voltage Inclined Plane Tracking and Erosion Test Equipment for Insulating Materials as per ASTM D2303, IEC 60587 and EN 50397-1

This is a high Voltage Inclined Plane Tracking and Erosion Test Equipment for Insulating Materials as per ASTM D2303, IEC 60587 and EN 50397-1
This is a high Voltage Inclined Plane Tracking and Erosion Test Equipment for Insulating Materials as per ASTM D2303, IEC 60587 and EN 50397-1

As per ASTM D2303, insulating material should withstand against tracking & Erosion on the field. Which why they are evaluated in a laboratory by means of liquid contamination in a particular arrangement. The equipment displayed herewith are used for the same purpose. A high voltage is applied between two electrodes and a liquid contaminant is used in between so as to check & measure tracking. We offer this system in various configurations based on your application – R&D or Compliance Test & Assessment.

Get A Quote

The routines/measurements that can be conducted by this equipment are:

  • Initial Tracking Voltage
  • Time to track
  • Erosion

In Initial Tracking Voltage test, as per clause 9.0 of ASTM D2303, test voltage is applied to the electrodes and is gradually increased in steps till the insulation fails. A qualified operator observes & records the character of the track and the appearance of the test specimen. For detailed explanation, please refer ASTM D2303, IEC 60587 and EN-50397-1.

In Time to Track test, a constant specified test voltage is applied and the tracking time is recorded.

In erosion test, a test voltage lower than the voltage required to break the insulation is applied for an extended period of time.

The object here is to measure the erosion as a function of time of voltage application. Please contact us for a free consultation regarding test methods in ASTM D2303, IEC 60587 and EN-50397-1

Salient Features

  • Specially designed electrodes as per product under test.

  • Lighting arrangement in test chamber.

  • Facility to easily calibrate the system for voltage as well as time calibration.

  • Seven segment LED display for voltage and current indication.

  • Takes care of the test procedures as per ASTM D2303, IEC 60587 and EN-50397-1

Specification

  • Output voltage: Regulated 100 V to 7500 V AC programmable.
  • Series ballast selection– 1 k, 10 k,20 k and 50k with link.
  • Tripping current setting: 30 mA & 60 mA
  • Electrode system: Stainless still material.
  • Angle of inclination: 45 deg.
  • Fixture arrangement: Made for flat test specimen as well as for various size cables.
  • Liquid deliver capacity: 0.075 ml/ min to 0.900 ml/ min; programmable.
  • Test chamber: UV protected Glass door with door interlock.
  • Enclosure: built with aluminium profile and MS covers with powder coating.

Variants & Similar Products

ASTM D149 – 09 - Hipot

ASTM D149 -
High Voltage tester (100kV)


In this test, an AC high-voltage is applied using simple test electrodes at opposite faces of the solid insulating material.

Dry Arc Resistance Test Equipment for ASTM D 495, UL 746A & IEC 61621

Dry Arc Resistance Tester

This equipment is made to test the electrical insulating material by exposing it to Arcing under high voltage.

Water-tree growth resistance tester – ASTM D 6097

Water-tree growth resistance tester – ASTM D 6097

This is a test equipment to test & measure Relative Resistance to Vented Water-Tree Growth in Solid Dielectric Insulating Materials.
